OSCILLATOR
Oscillator
Silicon Creations offers a range of free-running oscillators designed for use as watchdog timers and core clock generators for MCUs and low-power chips. Available as off-the-shelf products in production across technology nodes from 3nm FinFET to 65nm, they can also be customized for specific applications.
Built entirely on baseline CMOS logic process masks with no external components required, these oscillators deliver compact, low-power operation with excellent frequency precision over PVT after trimming, making them ideal for IoT and embedded system clocking.
Key Oscillator Solutions:
- No external components required
- Baseline CMOS logic process masks only
- Sub-30uW power consumption
- Available from 3nm FinFET to 65nm
- Excellent frequency precision after trimming
- Period jitter less than 1%
- Custom designs for specific applications
- Watchdog timer and MCU clock applications

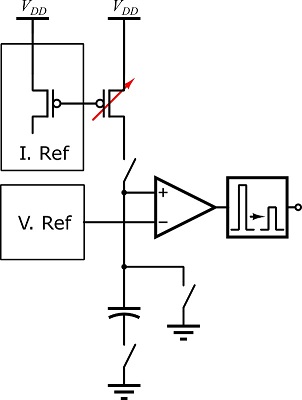

Free-Running Oscillator Design
Silicon Creations free-running oscillators operate with no external components, using only baseline CMOS logic process masks. They consume less than 30uW of power while delivering excellent frequency precision over PVT after trimming.
- No external components required
- Baseline CMOS logic process masks
- Less than 30uW power consumption
- Production-proven across multiple technology nodes

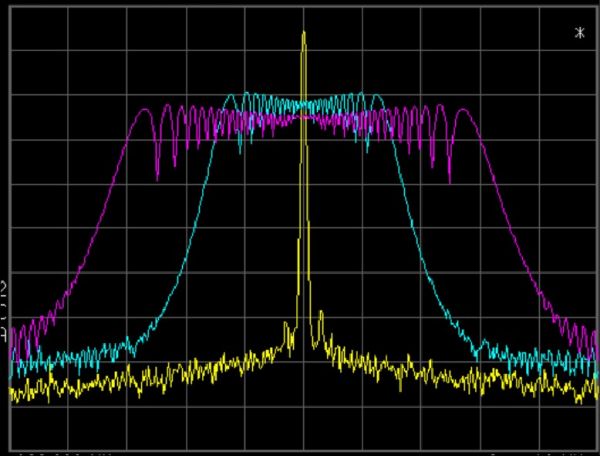

Frequency Precision and Stability
After trimming, Silicon Creations oscillators achieve +/-1.5% accuracy over the full -40C to 125C temperature range, Vdd +/-10%, and product lifetime, with period jitter less than 1% for reliable clocking performance in demanding environments.
- +/-1.5% accuracy over -40C to 125C
- Stable across Vdd +/-10% variation
- Period jitter less than 1%
- Maintained accuracy over product lifetime
Process Node Coverage and Customization
Off-the-shelf oscillators are in production across technology nodes from 3nm FinFET to 65nm. Custom designs are available for specific application requirements, complementing Silicon Creations ring PLLs, LC-PLLs, crystal oscillators, and SerDes offerings.
- Production from 3nm FinFET to 65nm
- Custom designs for specific applications
- Complements ring PLL and SerDes portfolio
- Supported across all major foundries
