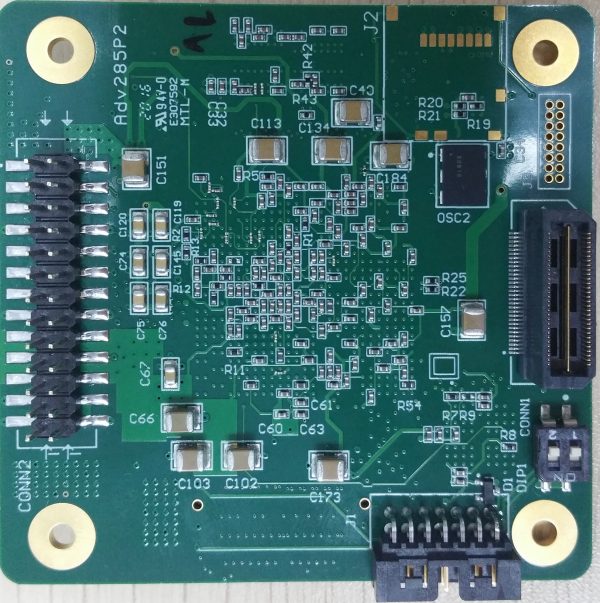

Small form factor Xilinx Kintex 7 XC7K325T FPGA Board supporting Image Sensor board

Product Description

The Advinno Kintex7 board supporting a 20 Megapixel Cmos Sensor daughter board is based on the powerful Kintex-7™ Field Programmable Gate Array (FPGA) from Xilinx. With its high-capacity, high-speed FPGA, fast external memories, high-speed digital video ports, and wide expansions options, the Kintex7 board is well suited for data and video processing applications. The high-speed Samtec connector opens the door to great expansion possibilities.

  • Xilinx Kintex-7™ FPGA (XC7K325T-2FFG900C)
  • 326,080 logic cells, each with four 6-input LUTs and 8 flip-flops
  • Close to 34 Mbits of block RAM
  • Ten clock management tiles, each with phase-locked loop (PLL)
  • 1920 DSP slices
  • Internal clock speeds exceeding 450MHz
  • On-chip analog-to-digital converter (XADC)
  • 4 Gb of DDR3L SDRAM (MT41K256M16HA-125)
  • 2 Gb BPI Flash (PC28F00BM29EWHA)
  • 2 Gb of QSPI Flash Memory (MT25QL02GCBA8E12)
  • Support of Cameralink
  • Commercial -2 speed grade
  • Small form factor 7cm x 7cm
