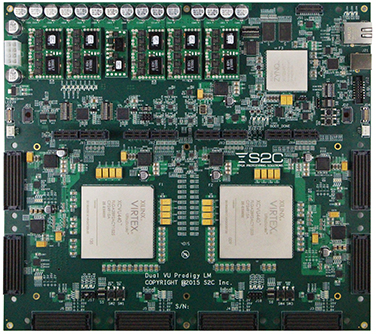

S2C Dual VU440 Prodigy™ Logic Module
Features
- 11.08M System Logic Cells and 177.2 Mb of internal memory
- On-board DDR4 SO-DIMM socket and DDR3 SO-DIMM socket support up to a total of 16GB of memory
- 1,152 general purpose I/O pins and 32 GTH transceivers on 8 Prodigy Connectors
|
 |

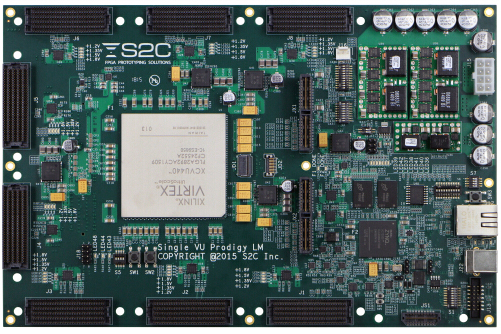

S2C Single VU440 Prodigy™ Logic Module
Features
- 5.54M System Logic Cells and 88.6Mb of internal memory
- On-board DDR4 SO-DIMM socket supports up to 8GB memory
- 1,152 I/O pins through 8 Prodigy connectors
|
|
 |
S2C PCIe VU440 Prodigy™ Logic Module
Features
- 5.54M System Logic Cells
- 88.6Mbs of FPGA internal memory
- 2,160 embedded 18×18 multipliers
- Two on-board DDR4 SO-DIMM sockets
- PCIe Gen3, Gen2 and Gen1 in x1, x2, x4, x8 with PCIe card edge connector
- 432 I/O pins
- 12 gigabit transceivers through 3 Prodigy Connectors
|
 |

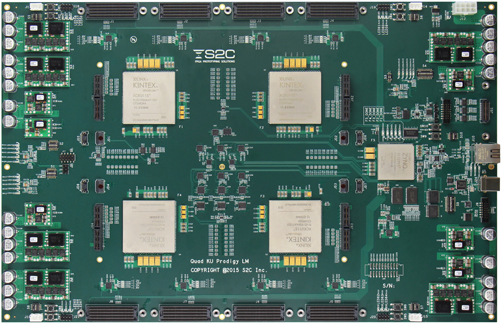

S2C Quad KU115 Prodigy™ Logic Module
Features
- 5.8M System Logic Cells
- 303.6Mb of FPGA internal memory
- 22,080 DSP Slices
- Each Prodigy Connector can support 8GB of DDR3 or DDR4 memories through optional daughter cards
- 1,152 high-performance I/O pins
- 32 Gigabit transceivers through 8 Prodigy connectors
|
 |

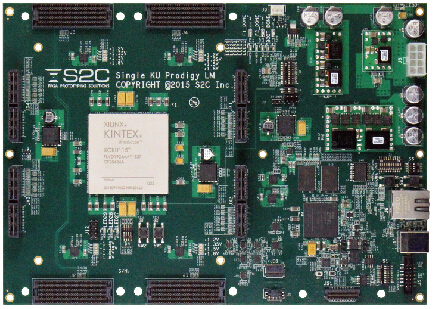

S2C Single KU115 Prodigy™ Logic Module
Features
- 1.45M System Logic Cells
- 75.9 Mb of FPGA internal memory
- 5,520 DSP Slices
- 576 high-performance I/O pins
- 16 Gigabit transceivers through 4 Prodigy connectors
|
|
